CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

Name: CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine
Brand: FAST
Price: 60500 USD

Quality CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine for sale

Brand Name : FAST

Model Number : PZG2020

Certification : ISO90

Place of Origin : CHINA

MOQ : 1set

Price : 60500~62000USD

Payment Terms : L/C, T/T

Supply Ability : 300sets

Delivery Time : 90days

Packaging Details : Film

Product name : Cnc Drilling Milling Tapping

Application : Metal Processing

Processing : Drilling Machine

Usage : Metal Drilling Milling Tapping Scribing

CNC or Not : CNC

Precision : High Precision Drilling Tapping Machine

Processing Types : Metal

Automatic Grade : Automatic

Spindle taper : BT50

Working size : 2000*2000MM

Contact Now

CNC High Speed Table Type Plate Drilling Milling Scribing Machine

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

APPLICATION

This machine is mainly used for drilling flanges, tube sheets, baffles and gear rings in petrochemical, boiler, wind power, engineering machinery.etc. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.

COMPOSITION

Worktable	Movable Gantry
Drilling Power Head	Automatic Chip Conveyor
Circulating Cooling Device	Automatic Lubrication
Hydraulic System	Pneumatic System
Electrical System

TECHNICAL DATA

Name	Specification
Mode	Gantry movable type CNC
Function	Drilling ,Milling
Table size (L*W)	2230*2300mm
Max. workpiece size (L*W)	2000*2000mm
Distance between the bottom of the spindle to work table	230~630mm
Processing Capability
Max. Drilling Depth	150mm
Max. Drilling Diameter	50mm
Drilling Power Head
Type of Power Head	BT50 Servo control power head
Quantity	1
Type of Clamp	Automatic broach, air pressure release
Spindle Technical Data
Spindle Power	22kW
Spindle Rotating Speed	0~3000r/min
Main shaft rated output torque	280Nm
Longitudinal movement X Axis
Max. Stroke	2000mm
Speed of X axis	0~6000mm/min
Servo motor power of X axis	2.3kW (with precision reducer)
Transverse movement of Y Axis
Max Stroke	2000mm
Speed of Y axis	0~6000mm/min
Servo motor power of Y axis	2.3kW (with precision reducer)
Vertical Stroke of Z Axis
Max. Stroke	400mm
Feeding Speed of Z axis	0~4000mm./min
Servo motor power of Z axis	2.3kW(with precision reducer)
CNC Axes	4 Axes
Machine Accuracy
Positioning Accuracy	<0.05mm
Re-positioning Accuracy	≤0.03mm
Verticality of Spindle to work table	≤0.03mm (within 300mm)
Run out of the bottom of spindle and the side spindle	≤0.005 mm
Lubrication system pressure	1.0MPa
Cooling system & filter system
Cooling System Max. Pressure,Power, Flow	5.0MPa,5.5kW, 30L/min
Chip remover power	0.75kW
*Outline dimension(LWH)*	3170*3100*2600mm
Total Power	Appx.34kW
Net Weight	Approx. 16T

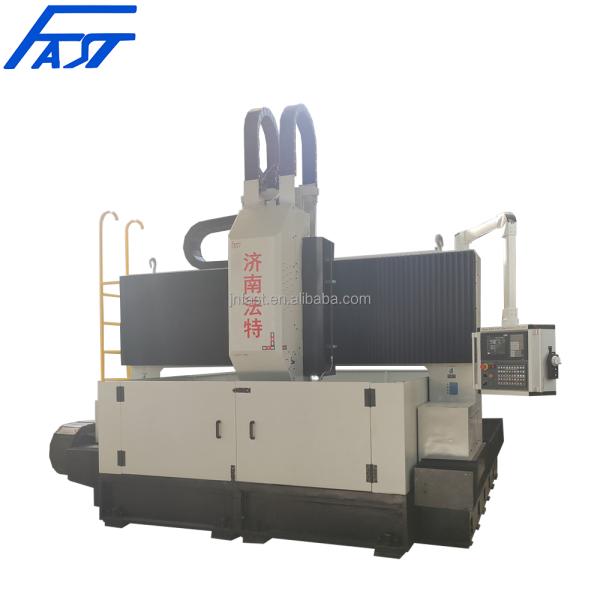

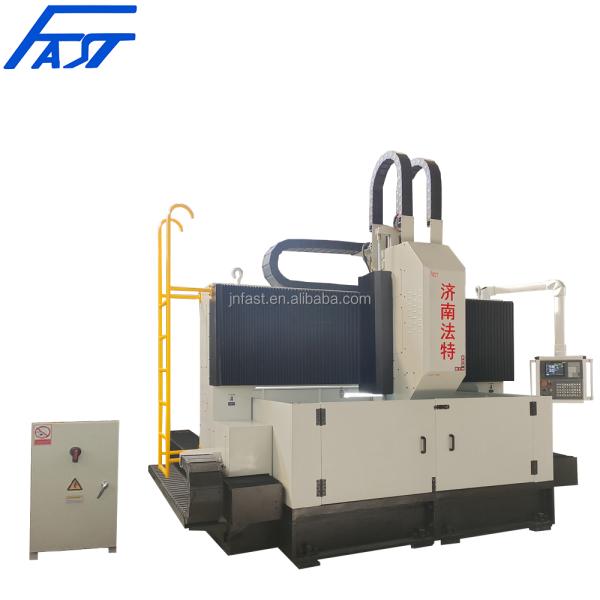

DETAIL IMAGES

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

WHY CHOOSE US

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

COMPANY PROFILE

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

COMPANY PROFILE

WORKSHOP

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

CUSTOMER VISIT

FAQ

CERTIFICATE

PACKING AND SHIPPING

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine

CONTACT

CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine
